MODUtherm - Horizontal

Modular Air Handling Units with EC fan motors.
Up to 19,000 Litres/Sec.


MODUtherm® fully integrates multiple technologies to minimise energy consumption and deliver reliable, trouble-free performance. Their modular design and construction reduces overall unit dimensions making them ideal for plant rooms with limited space. The high quality range features state-of-the-art high efficiency EC plug fans and the latest airtight casing construction.

MODUtherm’s innovative design incorporates EC fans that operate in parallel and are mounted adjacent to each other on an internal wall. The design provides inherent fan redundancy and will continue to operate even if there is a fault with one fan. The fans can be controlled by MODBUS or 0-10V signal and run independently or integrated into most building management systems.

The units are constructed with 50mm thick insulated panels that are fitted with the revolutionary AHU CLIP ‘n’ LOCK fastening system. This airtight system includes a synthetic cord and aluminium capping that give the unit a strong, rigid structure and allows the panels to be removed easily for maintenance and cleaning. AHU CLIP ‘n’ LOCK also provides a high thermal performance which reduces condensation and minimises energy loss. The high quality modular casing construction achieves both the highest degree of air tightness, rating “L1”, and the highest resistance to condensation, rating “TB1”, as defined in BS EN 1886:2007.

They are also available in Vertical or Multizone configurations.

  • High quality double skin Colorbond 50mm polyurethane panel construction that complies with National Construction Code insulation specification J5.2
  • Panels have zero ozone depleting potential (0% ODP)
  • High efficiency EC plug fans with integrated speed control, current overload and motor phase protection, reverse polarity, locked rotor protection and soft starting
  • EC plug fan motors exceed EU’s minimum level of efficiency for electric motors (IE4)
  • To minimise on-site installation time fan motors are pre-wired to a junction box
  • Chilled water cooling coils available with 3, 4, 5, 6, 8 or 10 rows and 315, 394 or 472 fins per metre
  • Hot water heating coils available with 1 or 2 rows and 315, 394 or 472 fins per metre
  • Cooling and heating coil separation with access door also available
  • Matching filter plenums are available
  • Upper and lower condensate tray manufactured from quality 304 grade stainless steel (316 grade stainless steel option also available)
Commercial applications including:
  • Shopping centres
  • Office buildings
  • Hotels
  • Health facilities
  • Schools and Universities

Units incorporate the unique AHU CLIP ‘n’ LOCK system where the removable casing panels clip into a continuous aluminium locking strip with an EPDM closed cell foam underseal. The locking strip is secured into position with a continuous synthetic cord, forming an airtight seal. MODUtherm units include a modular, thermally broken aluminium frame construction with double skin, 50mm thick polyurethane-filled panels. The unit case has a Class L1 leakage rating and TB1 thermal bridging rating. Casing construction complies with National Construction Code insulation specification J5.2 (all areas except for alpine areas).

Each unit is complete with a lift-off access panel on the coil pipe side. Access to the fan section and filter plenum is by hinged door. The upper and lower condensate trays are of a non-ponding design manufactured from grade 304 stainless steel.

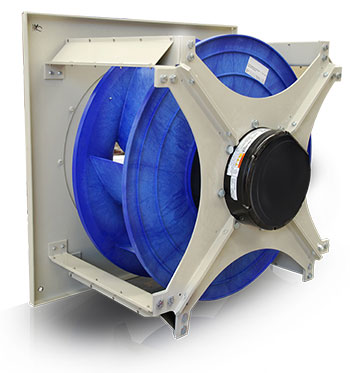

Units incorporate multiple, high efficiency EC plug type fans mounted adjacent to each other on an internal wall. The number of fans vary depending on the model.

  • EC motors are 3 phase 415V 50-60Hz
  • Bearings are sealed for life ball type
  • Integrated EC controller provides infinite speed control
  • IP54-rated

Integral thermal overload protection is supplied as standard.

Protection will not prevent fans from functioning in fire mode as required by AS/NZS1668.1:2015.

The Air Handling Units shall be of the MODUtherm series as designed by Fantech and be of the model numbers shown on the schedule/drawing.

Units shall incorporate a modular, thermally broken, aluminium frame construction with double skin, 50mm thick, polyurethane filled panels that achieve the highest degree of air tightness, rating “L1”, and the highest resistance to condensation, rating “TB1”, as defined in BS EN 1886:2007. Panels shall also comply with the National Construction Code insulation specification J5.2 and have zero ozone depleting potential (0 % ODP).

Unit casings shall incorporate AHU CLIP ‘n’ LOCK removable panels that are sealed airtight by the use of a continuous clip in aluminium locking strip with a continuous EPDM closed cell foam underseal. The panels are locked into the strip with a continuous synthetic cord. The panels shall be removable without the need to remove screws or fasteners. Cooling and heating capacities and external static pressures shall be as shown on the schedule.

Units shall incorporate multiple EC plug fans operating in parallel with motors exceeding EU’s minimum efficiency level (IE4) and complying with IP54 protection. Fans shall be pre-wired to an external terminal box.

Models *

Model Number

Air Flow
Litres/sec

Static
Pressure
(External) Pa
Cooling
Capacity
(Total) kW
Cooling
Capacity
(Sensible) kW
Heating
Capacity
(Total) kW
Motor
Power
kW
Full Load
Current
Amps
Drawing
PDF

MODU0202H 597 450 17.3 11.4 11.8 0.8 x 1 3.7 x 1 MODU0202H
MODU0203H 984 450 30.5 19.7 21.1 2.5 x 1 3.8 x 1 MODU0203H
MODU0204H 1372 450 32.9 22.8 30.3 2.4 x 1 3.7 x 1 MODU0204H
MODU0303H 1600 450 53.6 34.9 34.3 2.4 x 1 3.7 x 1 MODU0303H
MODU0205H 1759 450 53.6 34.9 39.4 2.4 x 1 3.7 x 1 MODU0205H
MODU0304H 2230 450 68.7 44.5 49.2 5.4 x 1 8.2 x 1 MODU0304H
MODU0305H 2860 450 87.2 56.7 60.3 5.4 x 1 8.2 x 1 MODU0305H
MODU0404H 3086 450 95.0 61.6 68.1 5.0 x 1 7.7 x 1 MODU0404H
MODU0306H 3490 450 104.2 68.2 74.7 5.0 x 1 7.7 x 1 MODU0306H
MODU0405H 3958 450 120.6 78.4 88.6 5.4 x 2 8.2 x 2 MODU0405H
MODU0307H 4116 450 125.4 81.6 90.8 5.4 x 2 8.2 x 2 MODU0307H
MODU0406H 4829 450 151.7 97.7 103.4 5.4 x 2 8.2 x 2 MODU0406H
MODU0505H 4841 450 147.5 95.9 102.1 5.4 x 3 8.2 x 3 MODU0505H
MODU0407H 5701 450 173.7 130.0 125.8 5.0 x 2 7.6 x 2 MODU0407H
MODU0506H 5907 450 176.3 115.4 126.5 5.0 x 2 7.6 x 2 MODU0506H
MODU0408H 6572 450 203.4 131.6 145.0 5.0 x 2 7.6 x 2 MODU0408H
MODU0507H 6973 450 208.1 136.2 149.3 5.4 x 3 8.2 x 3 MODU0507H
MODU0606H 6980 450 208.3 136.4 149.5 5.4 x 3 8.2 x 3 MODU0606H
MODU0508H 8039 450 248.8 161.0 177.4 5.4 x 4 8.2 x 4 MODU0508H
MODU0607H 8239 450 251.1 163.3 181.8 5.0 x 3 7.6 x 3 MODU0607H
MODU0509H 9104 450 274.6 179.2 203.8 5.0 x 3 7.6 x 3 MODU0509H
MODU0608H 9499 450 294.0 190.2 209.6 5.0 x 3 7.6 x 3 MODU0608H
MODU0707H 9815 450 299.1 194.5 216.6 5.0 x 4 7.6 x 4 MODU0707H
MODU0609H 10759 450 324.5 211.8 240.9 5.0 x 4 7.6 x 4 MODU0609H
MODU0708H 11316 450 339.5 221.9 249.7 5.0 x 4 7.6 x 4 MODU0708H
MODU0610H 12018 450 370.0 239.9 273.0 5.0 x 4 7.6 x 4 MODU0610H
MODU0709H 12817 450 386.6 252.3 287.0 5.0 x 4 7.6 x 4 MODU0709H
MODU0710H 14317 450 395.8 266.2 325.2 5.0 x 5 7.6 x 5 MODU0710H
MODU0711H 15818 450 447.3 298.3 359.3 5.0 x 6 7.6 x 6 MODU0711H
MODU0712H 17318 450 497.8 330.2 393.4 5.0 x 6 7.6 x 6 MODU0712H
MODU0713H 18819 450 543.9 360.0 433.6 5.0 x 6 7.6 x 6 MODU0713H
